High Pressure Hydraulic Jack In Piling Machine , Pile Foundation Equipment For Clay Soft Soil Sand Layer

1. Description:

Specialty equipment which installs piles using hydraulic cylinders to press piles into the ground. This system is preferred where noise, vibrations and limited access are a concern during the engineering, design and construction phases of the project.This system allows for greater press-in and extraction force to be used since more reaction force is developed. The reaction based machines operate at only 69dB at 23 ft allowing for installation and extraction of piles in very close proximity to noise and vibration sensitive areas where traditional methods may threaten the stability of existing structures.

2. Applications:

• Clay, soft soil, sand layer, etc.
• Noise regulated urban area.
• Vibration regulated areas

3. Specifications:

4. Feature Advantage:

• .Unique design of clamping mechanism for each jaw to be adjusted with the shaft bearing surface to ensure the largest contact area with the pile, avoid damaging the pile.
• Unique design of side/corner piling structure, improves the capacity of side/corner piling, the pressure force of side/corner piling up to 60% -70% of main piling. The performance is much better than hanging side/corner piling system.
• Unique clamping pressure-keeping system can automatically fill in the fuel if the cylinder leak oil, ensuring high reliability of clamping pile and high quality of construction.

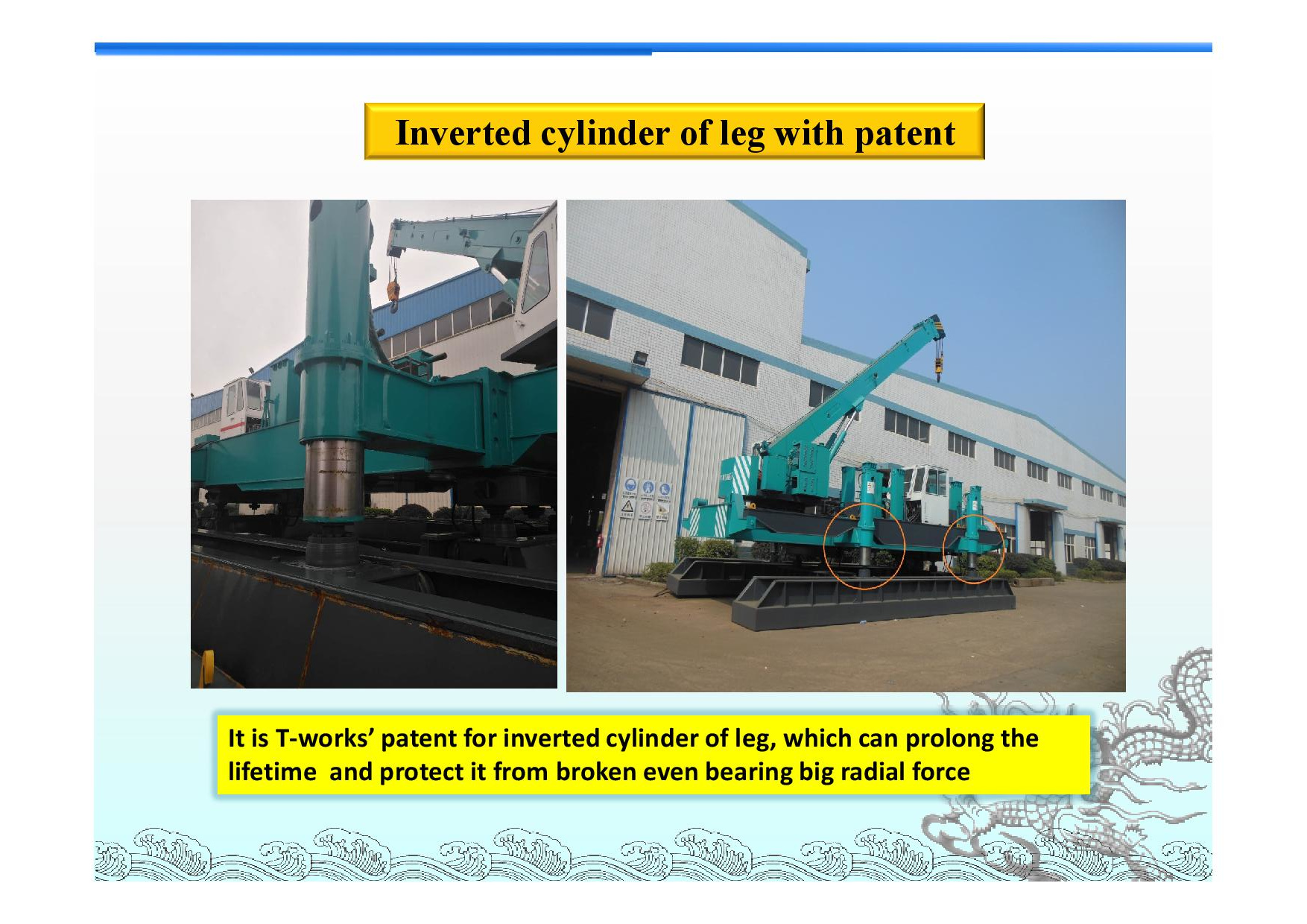

• 4Unique terminal pressure-stabilized system ensures no float to the machine at rated pressure, greatly improving the safety of operation.
• Unique walking mechanism with lubrication cup design could realize durable lubrication so as to extend service life of rail wheel.
• Constant & high flow power hydraulic system design ensures high piling efficiency.

5.After sale service and quality gurantee

1) To train operating,maintenance and construction people for our customers.

2) Always be ready to answer technical questions concerned from our customers.

3) Be responsible for the quality of our products and provide technical service of installing,making ajustment,testing and maintenance on the site in time.

4) To dispatch technicans to the worksite at short notice to solve problems or fix breakdowns.

5) Keep a record of our customers and be informed of the working performance of our products,feedback and suggestions of our customers so as to make a good cooperation with customers.
6) We guarantee to keep our Main Machine in good repair for 1 year after sale and 6 months for accessories. In the guarantee time, any quality problem caused by manufacturing after confirmation of us shall be repaired for free; Exceed the guarantee time, we can also supply repair services to our products charged for repair cost only.

Changsha Tianwei Engineering Machinery Manufacturing Co.,Ltd is a modern joint -stock private  enterprise found in 2005, it is specialized in R & D and manufacturing series of Hydraulic Static Pile Driver and other piling machinery such as bored pile drilling rig, hydraulic piling hammer, etc.

As the largest  exporter for hydraulic static pile driver in China, T-works is well known in domestic and abroad, and also holds the most market  share in Singapore, Malaysia, Indonesia, Ukraine, Thailand, Brunei, Vietnam ,Phillipine, The West Europe, Middle East and so on.

With bigger than 22000m2 of workshop , T-works also had a group that are advanced engineers and CNC machines, lean production ,6S management, as well as Global Marketing & After Sale Service. Nowadays we can meet different requirements of different construction worksites from design, manufacture, sale and service.

Our company follows the motto"Modesty, Sincerity, and To Be Excellent", e are willing to serve all our customers and be good friends with them.

At any time, we provide not only products of reliable quality but also excellent and efficient service.

By any way our professionals will work hard to find a good technical solution to satisfy the needs of customers.

At any where we have the facilities to keep in touch with our customers, technical know-how and flexibility in designing machines and doing business so as to keep up with the development of the market.
