    ISO9001 ZYC360 Pile Injection Machine For Concrete Pile Of Piling Foundation

    Ask Lasest Price
    Brand Name : T-works
    Model Number : ZYC360
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, D/A
    Supply Ability : 30units per month
    Delivery Time : 20days
    • Product Details
    • Company Profile

    ISO9001 ZYC360 Pile Injection Machine For Concrete Pile Of Piling Foundation


    New Pile injection machine for concrete pile of piling foundation ZYC360

    1. Product description :


    1). unique design for clamping box by integral processing to ensure the higher strength and verticality.
    2). Adopt the forged roller and clamps which make sure the much longer lifetime for movement structure.
    3). Unique structure for short boat by strength ribs to make sure the higher benging resistance.

    The machine can jack in the precast concrete pile from 150mm to 500mm for square pile, 200mm to 600mm for round pile. It also can push the tube, triangle pile, H-pile, etc by changing its jaws inside of the clamping box.



    2. Application:


    1) Clay, soft soil, sand layer ,etc
    2) Noise regulated area
    3) Vibration regulated areas, such as near buildings, precision instrument buildings, subway, overpass and so on.



    3. Specification of the ZYC360 pile injection machine:


    ItemModel/sizeItemModel/size
    Main pushing cylinder220/160-1900Pushing stroke1.9m
    Assistant pushing cylinder250/180-1900Pushing stroke1.9m
    Outrigger cylinder280/200-1500Stroke for outrigger cylinder1.0m
    Long boat cylinder160/100-3600Stroke for long boat3.6m
    Short boat cylinder160/100-700Stroke for short boat0.7m
    Clamping cylinder280/200-50Clamping box8cylinders type
    Crane capacity16Ton X 15metersPumps for pile pushing2 * A7V107
    Side jacking mechanismStandard typeEngine motor for pile pushing2* 37KW
    Main working pressure24MpaPumps for crane1 * 80YCY
    Piling speed7.4m/minEngine motor for crane1 * 30KW
    Max spun pile600mmMax square pile500mm
    Min working size12m x 7.1mMin weight for main body40ton
    Weight of main machine115tonsCounterweight needed245tons
    Total capacity360Ton


    4. Advantages

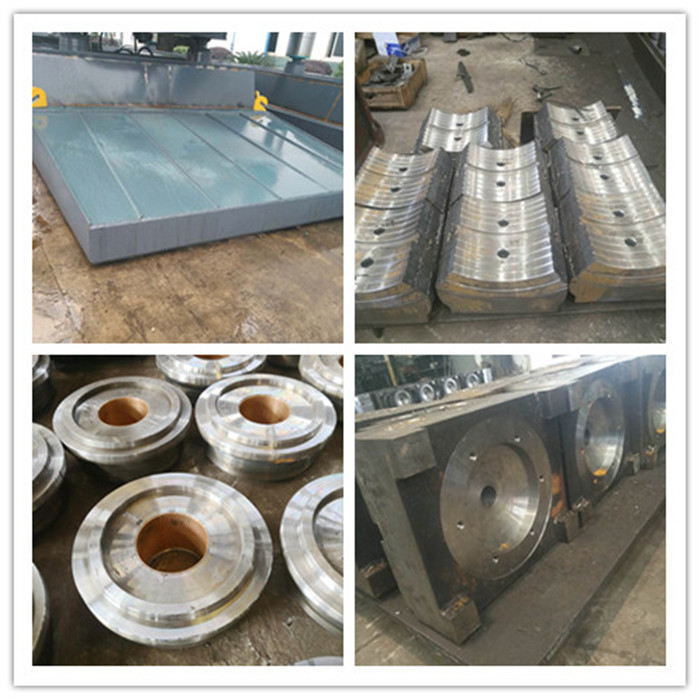

    1) Unique design for short boat for better bending resistance and longer lifetime; Forged roller and clamps to ensure longer lifetime and better resistance; cooper sleeve for roller and so on.


    2) Side mechanism


    Side piling mechanism can reach at least 50% of center piling capacity, sharing the same clamping box and jaws with center. It can push the triangle pile, square pile, round pile, H- pile, and other shapes.





    3) Assembly and De- mobilization


    After shipment, the machine has to be assembled using the instructions and maybe with help of our employees as usual , This takes one or two days, after which a trainning can be given in working with the hydraulic pile pusher.
    This is a special design for its cabin which is good for crane transporation .



    4) After sale service and quality gurantee

    1) To train operating,maintenance and construction people for our customers


    2) Always be ready to answer technical questions concerned from our customers.
    3) Be responsible for the quality of our products and provide technical service of installing,making ajustment,testing and maintenance on the site in time.
    4) To dispatch technicans to the worksite at short notice to solve problems or fix breakdowns.
    5) Keep a record of our customers and be informed of the working performance of our products,feedback and suggestions of our customers so as to make a good cooperation with customers.

    6) We guarantee to keep our Main Machine in good repair for 1 year after sale and 6 months for accessories. In the guarantee time, any quality problem caused by manufacturing after confirmation of us shall be repaired for free; Exceed the guarantee time, we can also supply repair services to our products charged for repair cost only.
