    1200mm Max Stroke Hammer Piling Machine , Drop Hammer Piling Rig

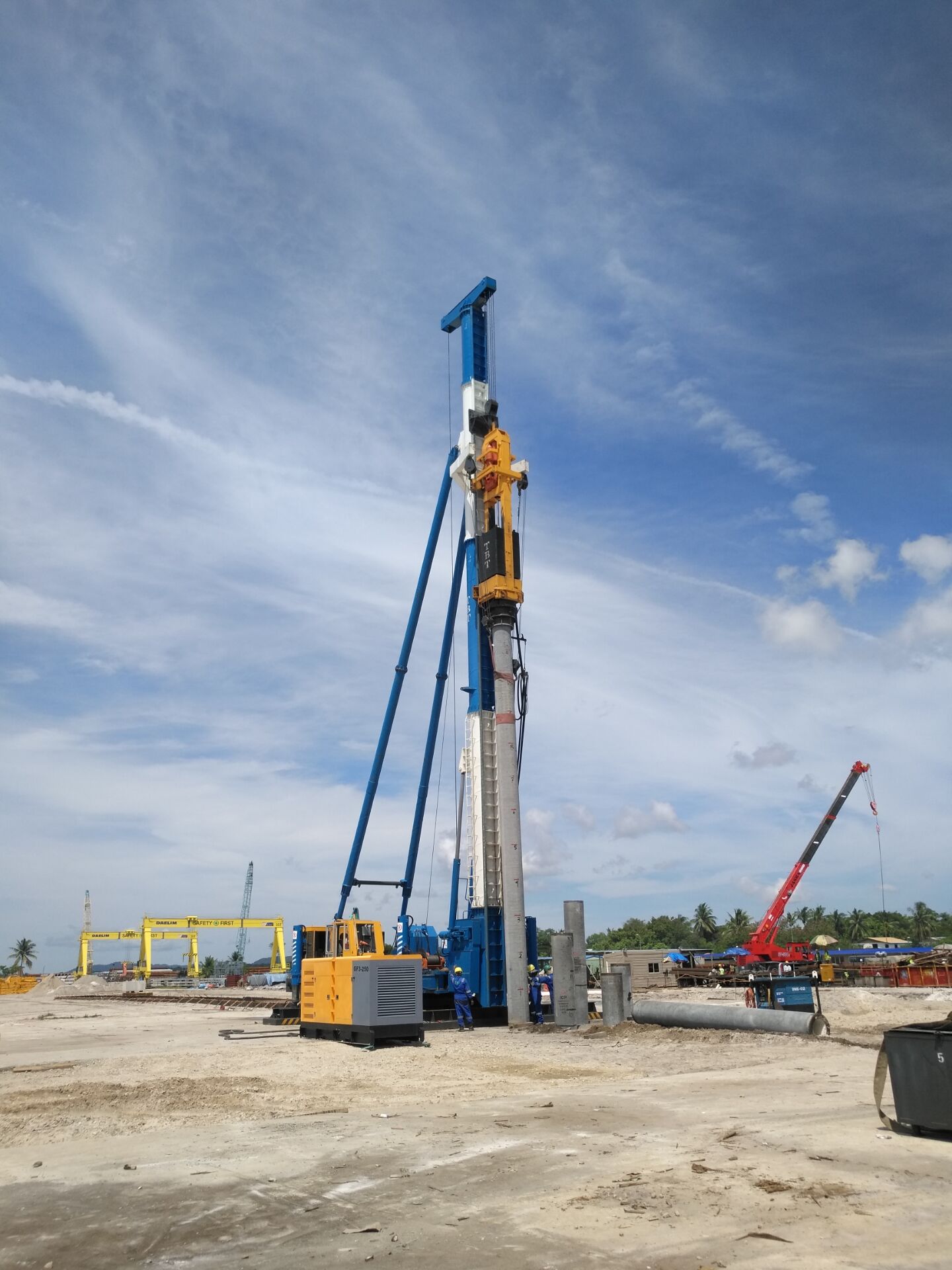

    T-WORKS 13T Hammer Piling Machine For Engineering Foundation Piling For All Types Of Pile

    1. Description:


    hydraulic piling hammer is a new generation with high blow rate and lower cost. The capacity is from 5T to 16T , and keep developing bigger capacity all the time accordingly. Hydraulic piling hammer is featured with no air pollution, lower vibration, high working effciency, very suitable for the big concrete spun pile, from size 300mm to 1000mm.


    2. Applications:


    - It is widely used in foundation construction, bridge, port and sea construction.


    - can drive any types of pile, expecially PHC spun pile, square pile, H-pile, tubes etc


    3. Specifications:


    Max Strike energy136 KN.m
    Max stroke of hammer1200 mm
    Min stroke of hammer200 mm
    Ram Weight13000 kg
    Strike frequency(Max/Min)20-50
    Pump set2 * A7V107
    Max oil pressure23 Mpa
    Distance between guide rail and the core of hammer780 mm
    Center distance of Guide rail330/600 mm
    Weight of complete set of hydraulic hammer20000kg
    Total height7780mm

    4. Feature Advantage:


    - High blow rate and remote control system are effective for fast and accuracy driving.

    - Hydraulic and electrical components are imported to ensure the quality.

    - Ram slide can be changed easily by the special design.
