    960T Piling Capacity Hydraulic Press In Pile Driver For Big Pile Construction

    Ask Lasest Price
    Brand Name : T-WORKS
    Model Number : ZYC960B-B1
    Certification : ISO9001/SGS / GOST/CE
    Price : Negotiable
    Supply Ability : 15 units per month
    Delivery Time : 30-45 days after deposit received
    Payment Terms : L/C, T/T, D/P, Western Union
    • Product Details
    • Company Profile

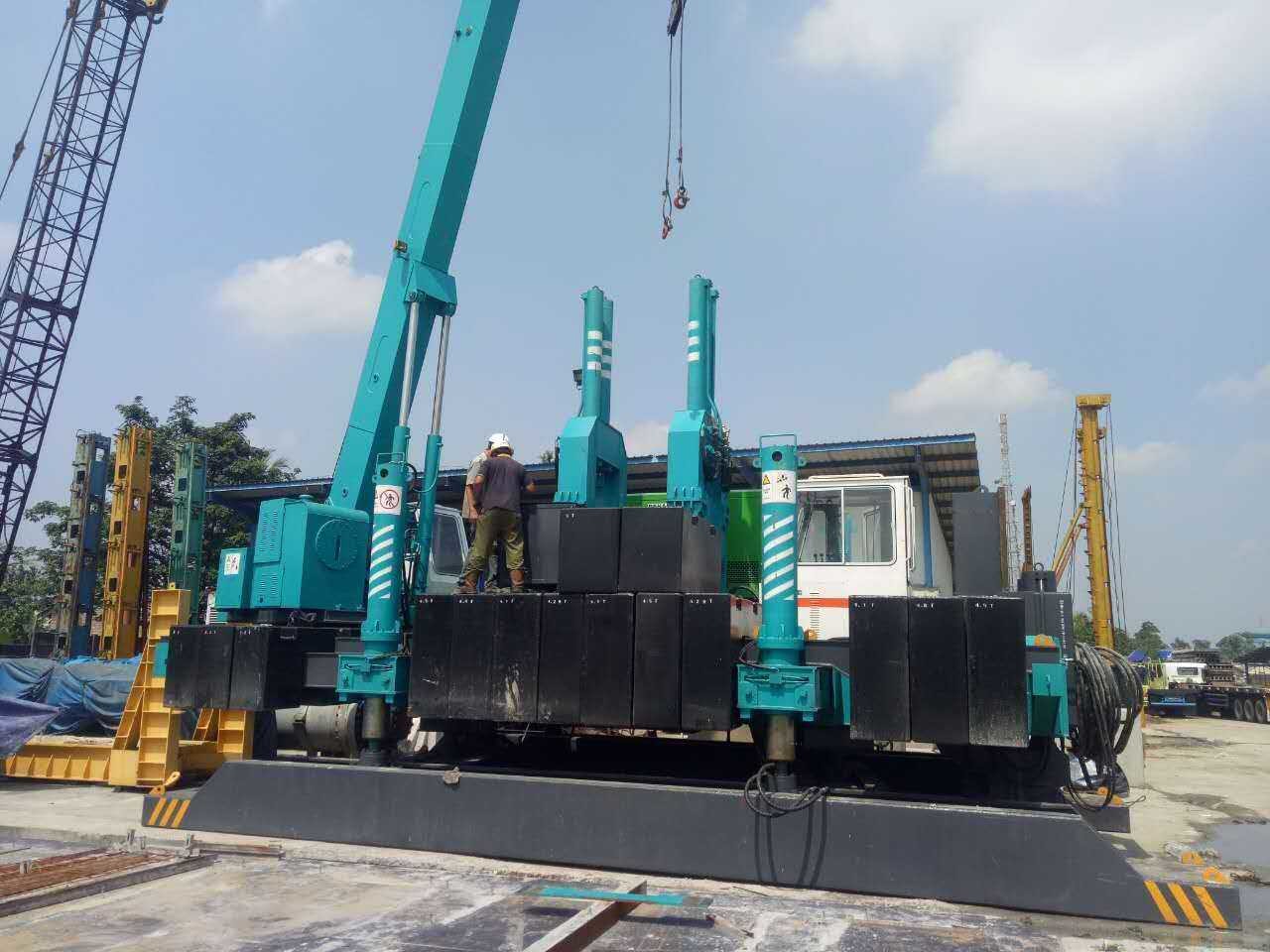

    960T Piling Capacity Hydraulic Press In Pile Driver For Big Pile Construction

    No Noise Hydraulic Press In Pile Driver With 960T Piling Capacity For Big Pile Construction


    1. Description:

    Hydraulic static pile driver also can be called hydraulic pile driving machine , which features with no noise ,no vibration, high efficiency and excellent quality,it was wide applications in jack in concrete spun pile, squre pile, H pile,and other precast piles at the site of.


    2. Applications:

    1)No limitation on pile length. Suitable for construction in clay soil, soft soil and sand bed foundation, or in the Karst areas with low earth covering, or by riversides, or in coastal areas with deep bearing stratum.

    2)No noise, No pollution during construction, especially suitable for operations in areas with noise control such as schools, social communities, and urban areas.

    3)No vibrations. Suitable for vibration-control areas such as subways, overpass, dangerous buildings, precision instrument buildings and those nearby banks.​


    3. Specifications:

    Paramete / Type/ModelZYC960
    Rated piling pressure(KN)9600
    Piling speed(m/min)Fast7.20
    Low1.10
    Piling Stroke(m)1.90
    Pace(m)Longitudinal3.60
    Horizontal0.70
    Angle range(°)11
    Rise stroke (m)1.2
    Max square pile(mm)max□650
    Max cirle pile(mm)max¢800
    Side piling space(mm)1400
    Cirle piling space(mm)2800
    Lifting weight(t)25
    Lifting pile's lengh(m)17
    Power(KW)Piling141
    Lifting37
    Main dimension(m)Lenth of work15.4
    Width of work8.62
    Transprorting height3.35
    Total weight(T)≥960

    4.Feature Advantages:

    1) High efficiency: To ensure the high working efficiency of the whole machine,we use hydraulic systems with big power and great flow, the pile drving mechanism with multi-speed control and being quick in getting ready for operation.

    2) Bigger piling capacity:Our products have bigger capacity of side piling and corner piling than those of other companies, and the power of side or corner piling reaches 60% of the middle piling.

    3) Work with variety of piles: Our pile drivers can work with a variety of piles, squre piles or round piles and other shape of steel piles, no matter thin-walled round concrete piles or thick-walled ones.

    960T Piling Capacity Hydraulic Press In Pile Driver For Big Pile Construction


    5. After sale service and quality gurantee

    1) To train operating,maintenance and construction people for our customers.

    2) Always be ready to answer technical questions concerned from our customers.

    3) Be responsible for the quality of our products and provide technical service of installing,making ajustment,testing and maintenance on the site in time.

    4) To dispatch technicans to the worksite at short notice to solve problems or fix breakdowns.

    5) Keep a record of our customers and be informed of the working performance of our products,feedback and suggestions of our customers so as to make a good cooperation with customers.
    6) We guarantee to keep our Main Machine in good repair for 1 year after sale and 6 months for accessories. In the guarantee time, any quality problem caused by manufacturing after confirmation of us shall be repaired for free; Exceed the guarantee time, we can also supply repair services to our products charged for repair cost only.
