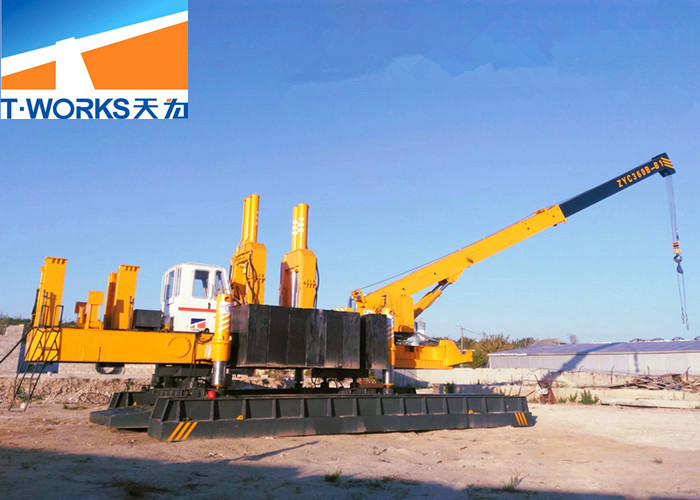

T-works ZYC 280T Hydraulic Press In Pile Driver With Fast Piling
Speed
1. Description:
T-works ZYC Series 280T Pile Foundation Equipment are featured with
no noise, no vibration, no pollution and no rubbish left in
construction site.It can work with H-piles, precast concrete and
steel piles with different shapes,like round,square and tapered
shape. There are series models range from 60T to 1200T.
It is adopted the hydraulic system design of large power and high
flow,the precast pile entirely depends on the hydraulic static
pressure so that the pile can be pressed into the ground steadily
and quietly.
The pressing-pile speed amounting to 300-800 meters within 8hours, which it's quite more efficient than other conventional pile
drivers.
This unique construction method with non-pollution has gradually
taken place of the pile hammer.
2. Applications:
No limitation on pile length. Suitable for construction in clay
soil, soft soil and sand bed foundation, or in the Karst areas with
low earth covering, or by riversides, or in coastal areas with deep
bearing stratum.
No noise, No pollution during construction, especially suitable for
operations in areas with noise control such as schools, social
communities, and urban areas.
No vibrations. Suitable for vibration-control areas such as
subways, overpass, dangerous buildings, precision instrument
buildings and those nearby banks.
3. Specifications:
| Parameter/Model | ZYC280 |
|---|
| Rate piling pressure(KN) | 2800 |
| Piling speed(m/min) | Fast | 7.7 |
| Low | 1.8 |
| Piling stroke(m) | 1.9 |
| Pace(m) | Longitudinal | 2.4 |
| Horizontal | 0.6 |
| Angle range(°) | 15 |
| Rise stroke(m) | 1.0 |
| Square pile(mm) | Max | 500 |
| Circle pile(mm) | Max | 500 |
| Side piling(mm) | 900 |
| Corner piling space(mm) | 1800 |
| Lifting weight(t) | 12 |
| Pile hanging length(m) | 14 |
| Power(KW) | Piling | 60 |
| Lifting | 30 |
| Main dimension(m) | Work length | 12 |
| Work width | 6.1 |
| Transpot height | 3.1 |
| Total weight(t) | 280 |
4. Features of Hydraulic static pile driver:
1)Civilized construction; Clean; No noise; No vibrations; No
construction wastes.
2)Reliable Construction Quality; Piling process is similar to
static load testing, where pile bearing force can be displayed.
100% pile success rate is guaranteed.
3)Fast piling and High efficiency; One HSPD can drive piles in
total of 600~800m per 8 hours, much faster than other modes.
Especially suitable for large-scale or time-constraint projects.
4)Walking and steering freely. Easy to align piles.
5)Compact conformation. Easy to disassemble & assemble.
5. After sale service and quality gurantee
1) To train operating,maintenance and construction people for our
customers.
2) Always be ready to answer technical questions concerned from our
customers.
3) Be responsible for the quality of our products and provide
technical service of installing,making ajustment,testing and
maintenance on the site in time.
4) To dispatch technicans to the worksite at short notice to solve
problems or fix breakdowns.
5) Keep a record of our customers and be informed of the working
performance of our products,feedback and suggestions of our
customers so as to make a good cooperation with customers.
6) We guarantee to keep our Main Machine in good repair for 1 year
after sale and 6 months for accessories. In the guarantee time, any
quality problem caused by manufacturing after confirmation of us
shall be repaired for free; Exceed the guarantee time, we can also
supply repair services to our products charged for repair cost
only.
